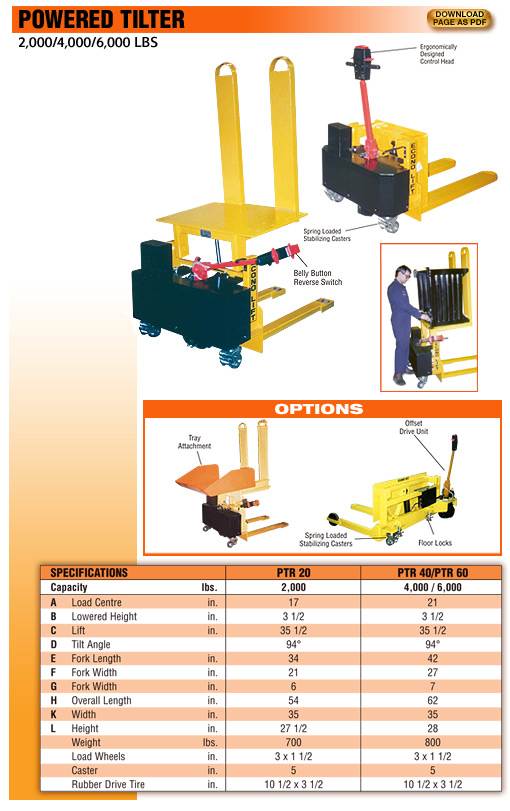

TilT Angle
• 0-94 degrees
Drive unit/electrics
• 24 volt system
• 2 speeds - for/rev
• Solenoid controlled
Control head
• Butterfly switches for forward and reverse
• Push buttons for raising
and lowering of tilt feature
Brakes
• Engaged in upper and
lower position of the
steering column
• Mechanical brake
system
Steering
• 180 degree turning
radius
• Handle held under
bracket to side for closer access to container
Power supplies
• D/C Battery
24 Volt Push Button
Options
• Forks-longer/shorter,
higher/lower to 3”,
wider/narrower
• Tray attachment to pick parts out from
• Height of backplate at
90° can be higher/lower
• 0-94 degrees
Drive unit/electrics
• 24 volt system
• 2 speeds - for/rev
• Solenoid controlled
Control head
• Butterfly switches for forward and reverse
• Push buttons for raising
and lowering of tilt feature
Brakes
• Engaged in upper and
lower position of the
steering column
• Mechanical brake
system
Steering
• 180 degree turning
radius
• Handle held under
bracket to side for closer access to container
Power supplies
• D/C Battery
24 Volt Push Button
Options
• Forks-longer/shorter,
higher/lower to 3”,
wider/narrower
• Tray attachment to pick parts out from
• Height of backplate at
90° can be higher/lower
